Duet uses the same interface and feature code on X3 and X4, so this gallery shows one representative X4 capture for each shared screen instead of publishing duplicate device sets. The gallery uses recognizable books from Lauren’s library so the interface looks like a real, varied reader. Every reading statistic, progress value, date, achievement state, device name, and sync value is deterministic fabricated test data. No EPUB, extracted cover asset, personal catalog, credential, contact detail, or real device-state file is included.

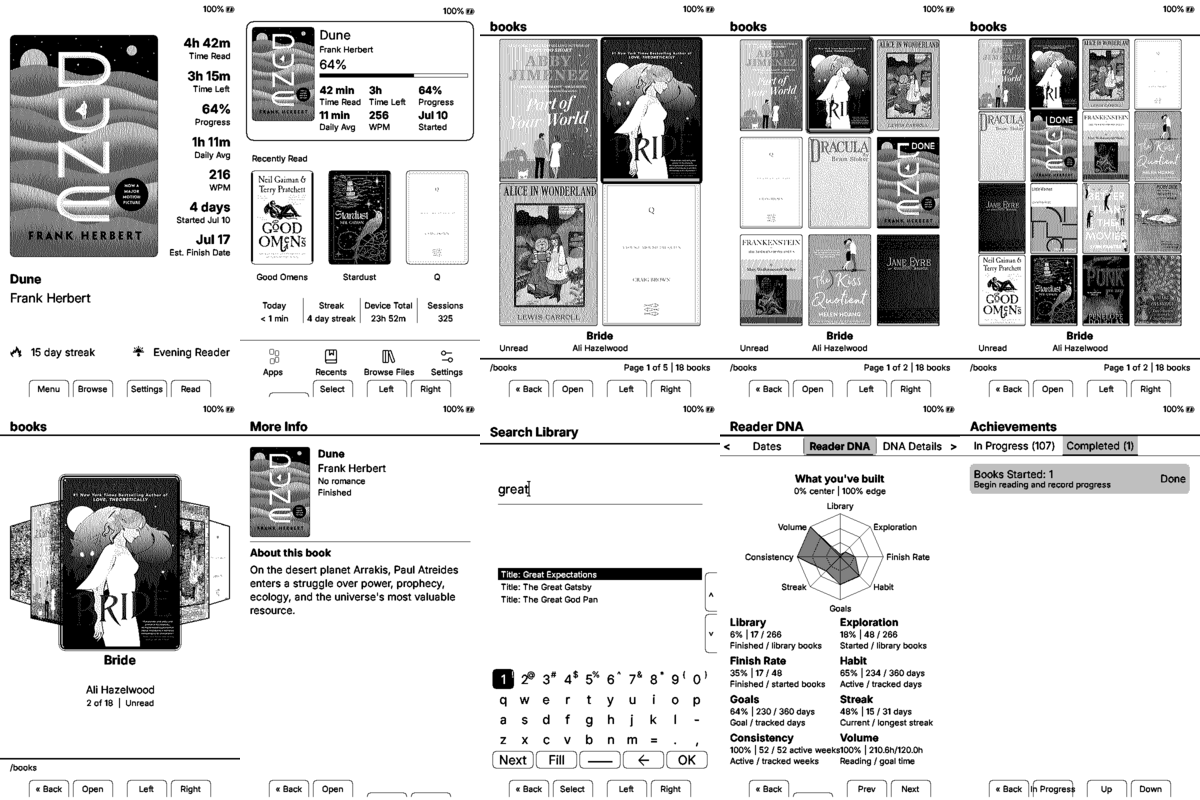

Feature Overview
Home And Navigation

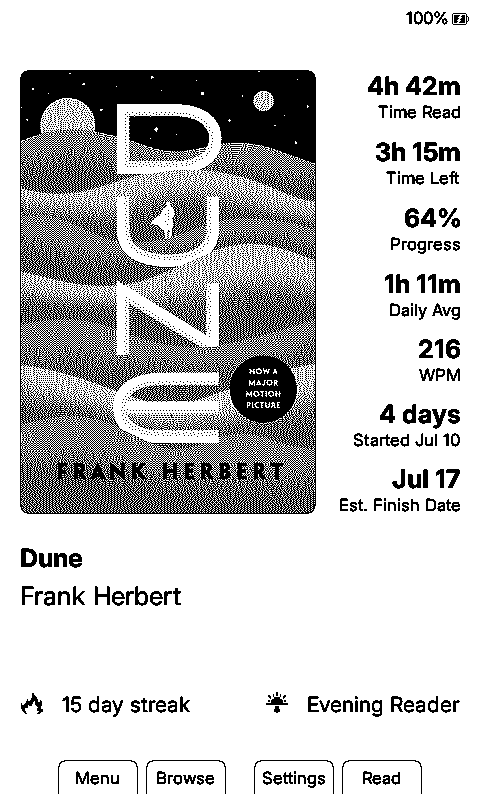

Dashboard
Reading Home
Home Menu
Cover Libraries

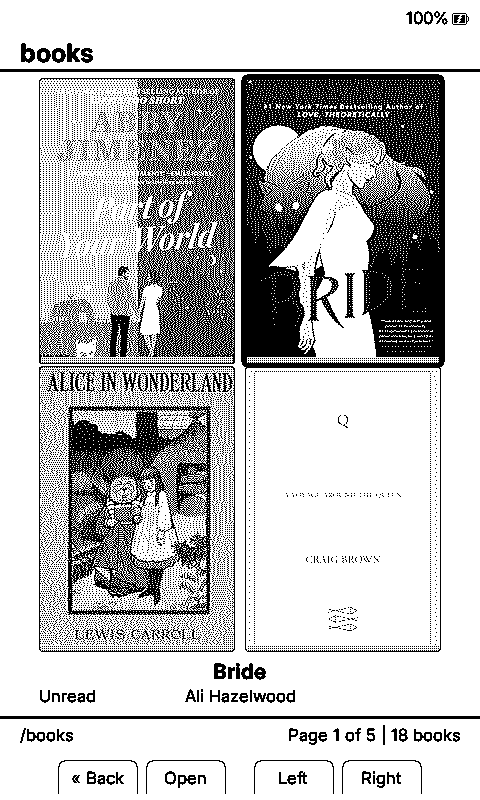

2x2 Grid

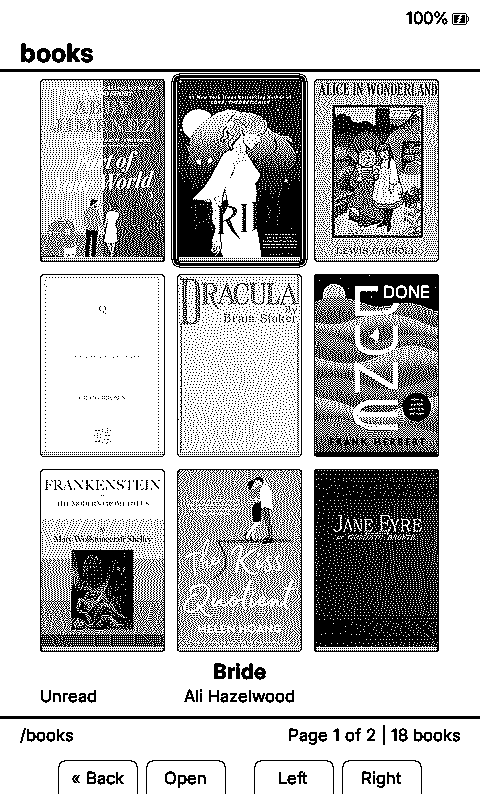

3x3 Grid

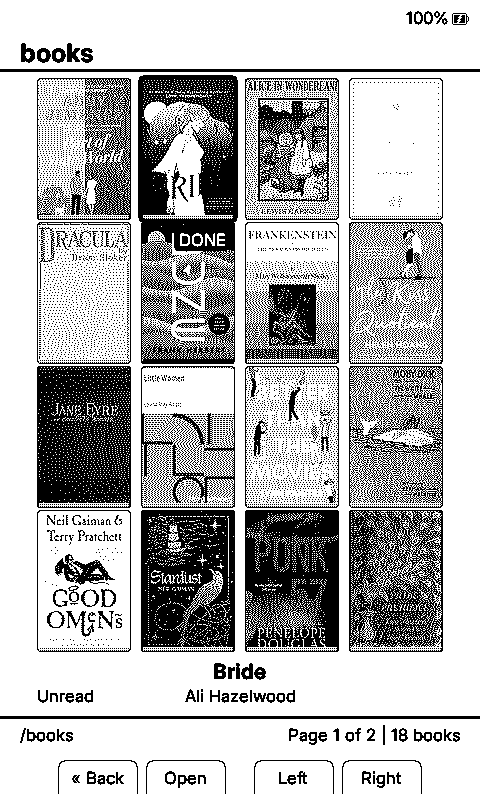

4x4 Grid

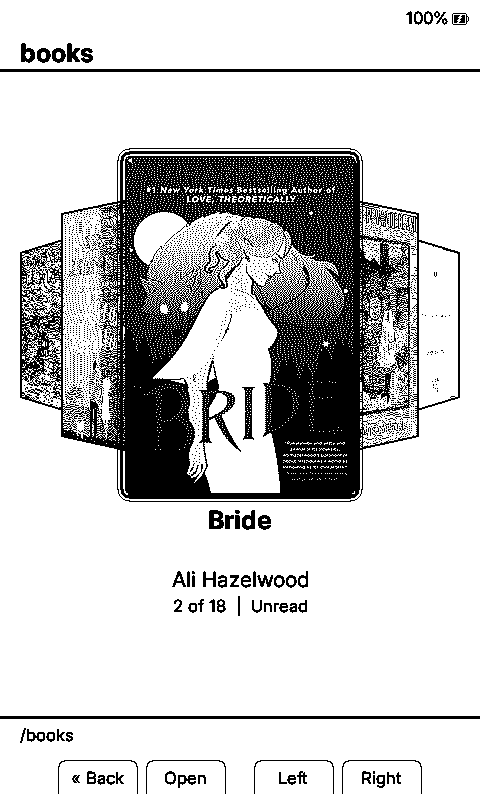

Carousel

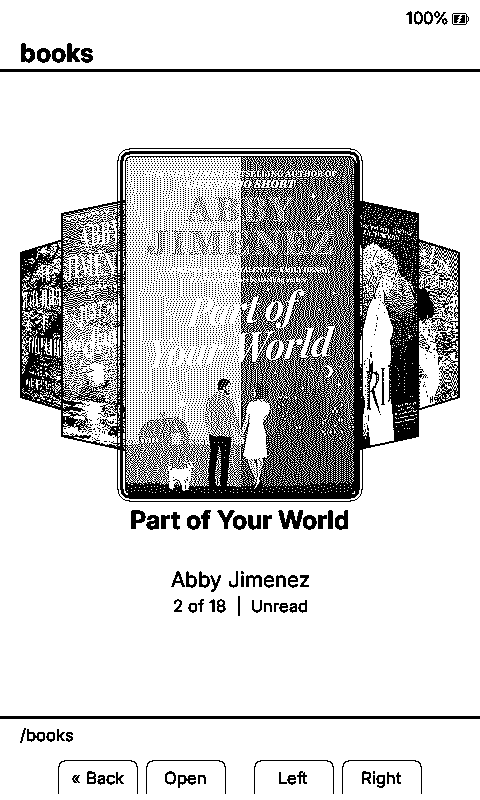

Scrolling Title
Search And Book Information
Autocomplete
Filled Suggestion
Results
More Info For The Selected Result
Reading Tools And Apps
Reader Menu
Book Info
Dictionary List
Definition
Apps
Favorites
Achievements
Completed Achievements
Tetris
Font Variety
Each picker capture compares a different current family with a different preview family, so the four examples showcase eight fonts rather than repeating the preview as the current selection.
Merriweather / Readex Pro
NV Garamond / NV Bitter
Atkinson Hyperlegible Next / OpenDyslexic
Cormorant Garamond / Great Vibes
Complete Shared Reading Stats Gallery
The complete Reading Stats gallery contains all 33 top-level pages and 10 alternate or detail states once. The same pages and controls are available on X3 and X4.
Reading Heatmap
Reader DNA
All-Device Stats
Evidence Boundary
Simulator screenshots prove rendering and deterministic UI coverage. They do not prove physical-device timing, SD-card behavior, panel refresh quality, sleep/wake behavior, radio sync, or long-session stability. Those remain part of the physical test matrix and alpha tester program.
Still To Capture On Physical Devices
The gallery is intentionally honest about what the simulator cannot prove. The remaining public media set needs:
Nearby Position Sync and Nearby Reading Stats Sync on two readers.
KOReader Sync without account details.
Clean X3 and X4 boot and sleep frames.
The System page showing the exact public Duet version.
The file-transfer web portal after an alpha.7 comparison and privacy pass.
An X3 and X4 together photo.
Short unsped clips of grid navigation, carousel hydration, book open/close, chapter pre-indexing, and two-device sync.
